Features

Viewing tests in the operator panel

The operator panel allows you to view the test hierarchy with test folder/test file/function levels. See the HardPy panel for more information. User can launch operator panel using hardpy run command.

Running tests

Based on pytest HardPy allows you to run pytest tests in the browser or command line. For running tests in browser run tests using hardpy run command.

hardpy run

and press the Start button. Alternatively, the user can start the operator panel with the “Start” button and run tests with pytest.

python -m pytest

The user can also run tests without the operator panel, just using the hardpy start command or using pytest.

Stopping the tests

The user can stop the tests during execution from the operator panel by clicking on the Stop button or using the hardpy stop command. It is possible to stop tests from the console by sending an interrupt, e.g. “Ctrl-C” in Linux.

Checking the status of tests

The user can check the status of tests using the hardpy status command.

Storing test result in database

HardPy does not allow you to run tests without a running CouchDB database. This is a NoSQL database that ensures that the results of the current test run are committed, even if the tests are aborted early.

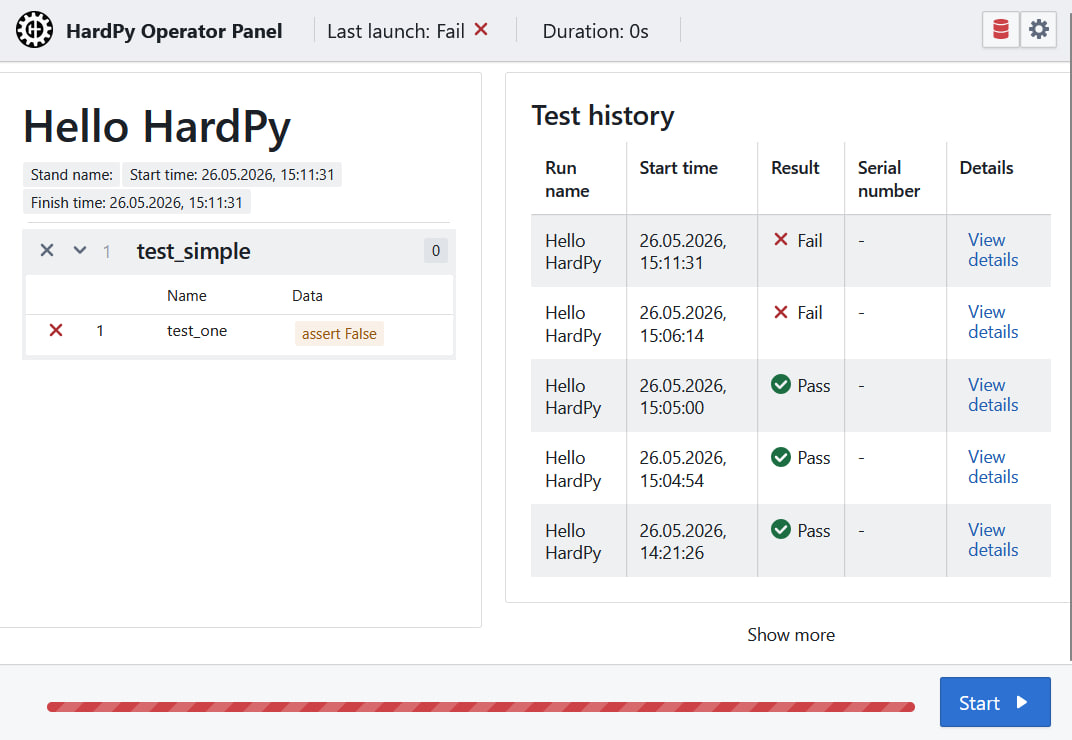

To save the report history, the user must configure the conftest.py file using the CouchdbLoader or another adapter to save the data. By default, only the current report in the runstore database is stored in CouchDB.

The test report format (database scheme) is described in the database runstore section.

An example of configuring conftest.py to store test run history can be found in several examples, including the couchdb_load and minute_parity.

Creating template project

The HardPy can create template project using the hardpy init command. An example of usage can be found in the how to init section among the examples, e.g. in minute parity.

hardpy init minute_parity

Interacting with tests in the operator panel

The user can interact with the tests through dialog boxes in the operator panel. HardPy provides the ability to enter text or numbers, make selections using checkboxes or radio buttons, guide the user through multiple steps in a single window, display images to the user, and insert HTML components into the dialog box using iframes.

In dialog boxes, the user must confirm their action by clicking the Confirm button. Closing the dialog box prematurely will abort the test.

If the user only needs to provide information, an operator message can be used. Unlike dialog boxes, the user cannot enter any information, only close the window. User can also close the operator message from within the test code and run it in non-blocking mode, so that displaying the window does not stop the test.

Running multiple test attempts

The HardPy allows the user to attach an attempt marker to a test, which allows the test to be repeated as many times as specified in the marker's content in the event of failure.

Skipping the tests

The HardPy allows the user to skip tests on dependency markers. The user can specify that a test or an entire module depends on another test. In this way, tests can be defined whose failure will prevent the marked tests from running. The user can also create a dependency on several test cases or modules. If the name of the dependency does not exist, the test will be started.

#test_1.py
import pytest

def test_a():
    assert False

@pytest.mark.dependency("test_1::test_a")
def test_b():
    assert True

#test_2.py
import pytest

pytestmark = pytest.mark.dependency("test_1")

def test_a():
    assert False

def test_b():
    assert True

@pytest.mark.dependency("test_2::test_a")
@pytest.mark.dependency("test_2::test_b")
def test_c():
    assert True

See the example skip test for more information.

Critical tests

The HardPy allows the user to skip subsequent tests marked as critical marker, if a critical test fails or is skipped. The user can designate individual tests or entire modules as critical. If a test case is marked as critical, its failure will skip all remaining tests in the current and subsequent modules.
If an entire module is marked as critical, the failure of any test within it will skip all remaining tests in that module and subsequent modules.

Example (test level):

@pytest.mark.critical
def test_a():
    assert False

def test_b():
    assert True

Example (module level):

pytestmark = pytest.mark.critical

def test_c():
    assert True

See the example critical for more information.

Running some instance in single stand

A user can run multiple HardPy instances on a single stand. The startup is described in the Multiple Stand example.

Storing test result to StandCloud

HardPy allows user to send test results to StandCloud, a data storage and analysis platform. See the StandCloud section and the StandCloud example for more information.

Logging approaches in HardPy

HardPy provides several methods for logging and user interaction during testing. Choose the appropriate method based on whether you need to store information in the database or just display messages to the operator.

Database logging with set_message

The set_message function stores the log message in the report. Messages without specified keys get auto-generated keys, while known keys update existing messages. Perfect for tracking test progress, recording measurements, system states, and verification results.

def test_temperature_sensor():
    temp = read_temperature()
    if temp > 50:
        set_message(f"Warning: High temperature {temp}°C", "temp_warning")
    else:
        set_message(f"Normal temperature {temp}°C")

Interactive dialogs with run_dialog_box

The run_dialog_box function creates dialog boxes for operator input with various widgets (text, numeric, checkboxes). Supports titles, images, and HTML content. Can be used to notify and interact with the user, but does not save the information in the report. The user can save the information separately using the set_case_artifact, set_module_artifact or set_run_artifact functions. Essential for manual equipment verification, test configuration confirmation, and safety checks.

def test_manual_calibration():
    dialog = DialogBox(
        dialog_text="Connect calibration device and press Confirm",
        title_bar="Calibration Setup",
        widget=RadioButtonWidget(options=["Ready", "Skip", "Abort"])
    )
    response = run_dialog_box(dialog)
    assert response == "Ready", "Calibration was not confirmed"

Operator messages with set_operator_message

The set_operator_message function displays non-interactive notifications without database storage. The user can save the information separately using the set_case_artifact, set_module_artifact or set_run_artifact functions. Can be used to notify and interact with the user, but does not save the information in the report. Supports titles, images, and HTML content, with optional blocking until dismissed. Ideal for equipment setup instructions, test phase transitions, and important warnings.

def test_system_startup():
    set_operator_message(
        msg="Please power on all test equipment",
        title="Initial Setup",
        image=ImageComponent(address="assets/power_on.png"),
        block=True
    )

Choosing the right method

Method	Database Storage	User Interaction	Best For
set_message	Yes	No	Permanent logs
run_dialog_box	No	Yes	Test steps requiring input
set_operator_message	No	No	Important notifications

Reading test result from StandCloud

HardPy allows user to read test result from StandCloud. See the StandCloud reader for more information.
