Raspberry Pi Compute Module 4 — interactive test points map, front + back

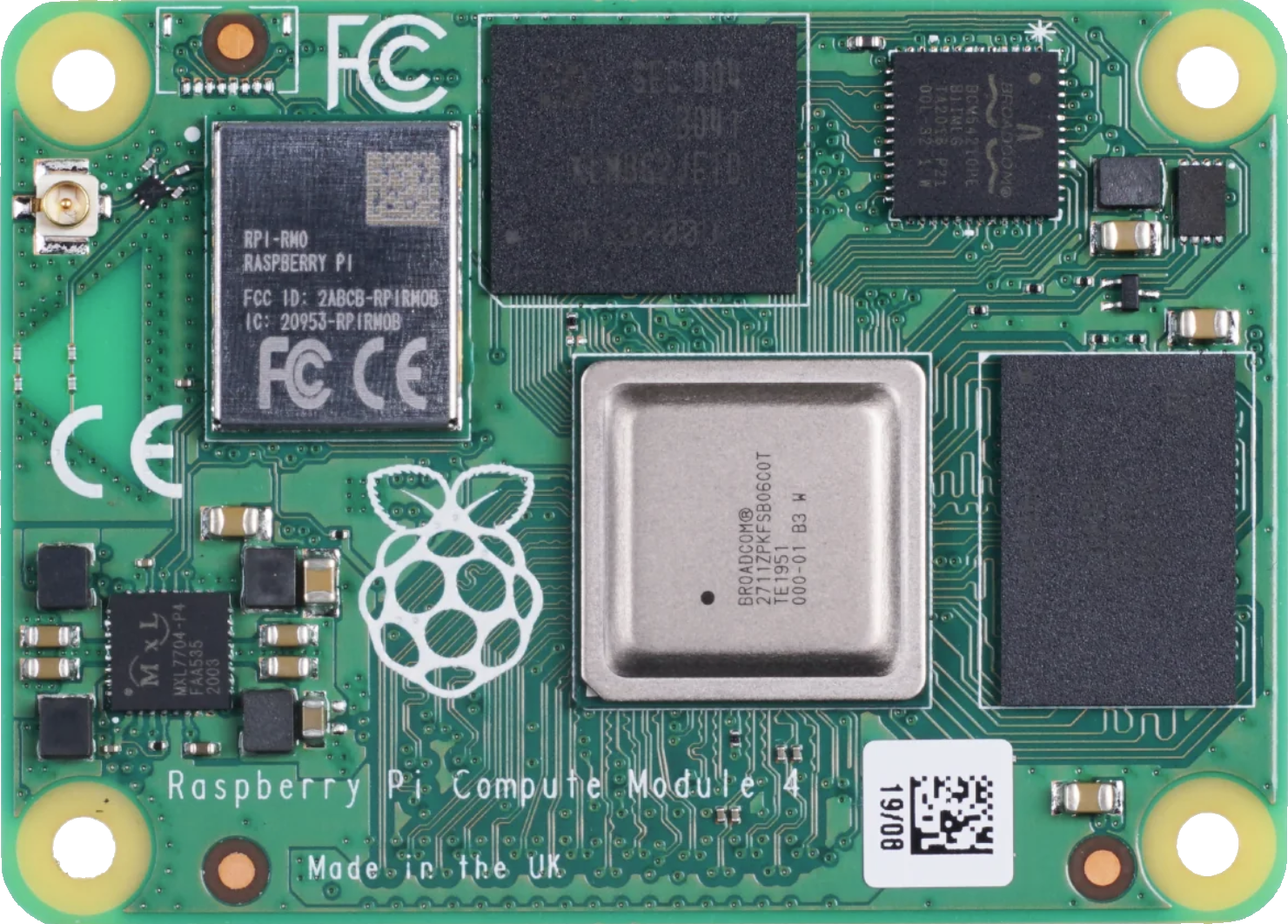

Front / top side
Raspberry Pi Compute Module 4 top side

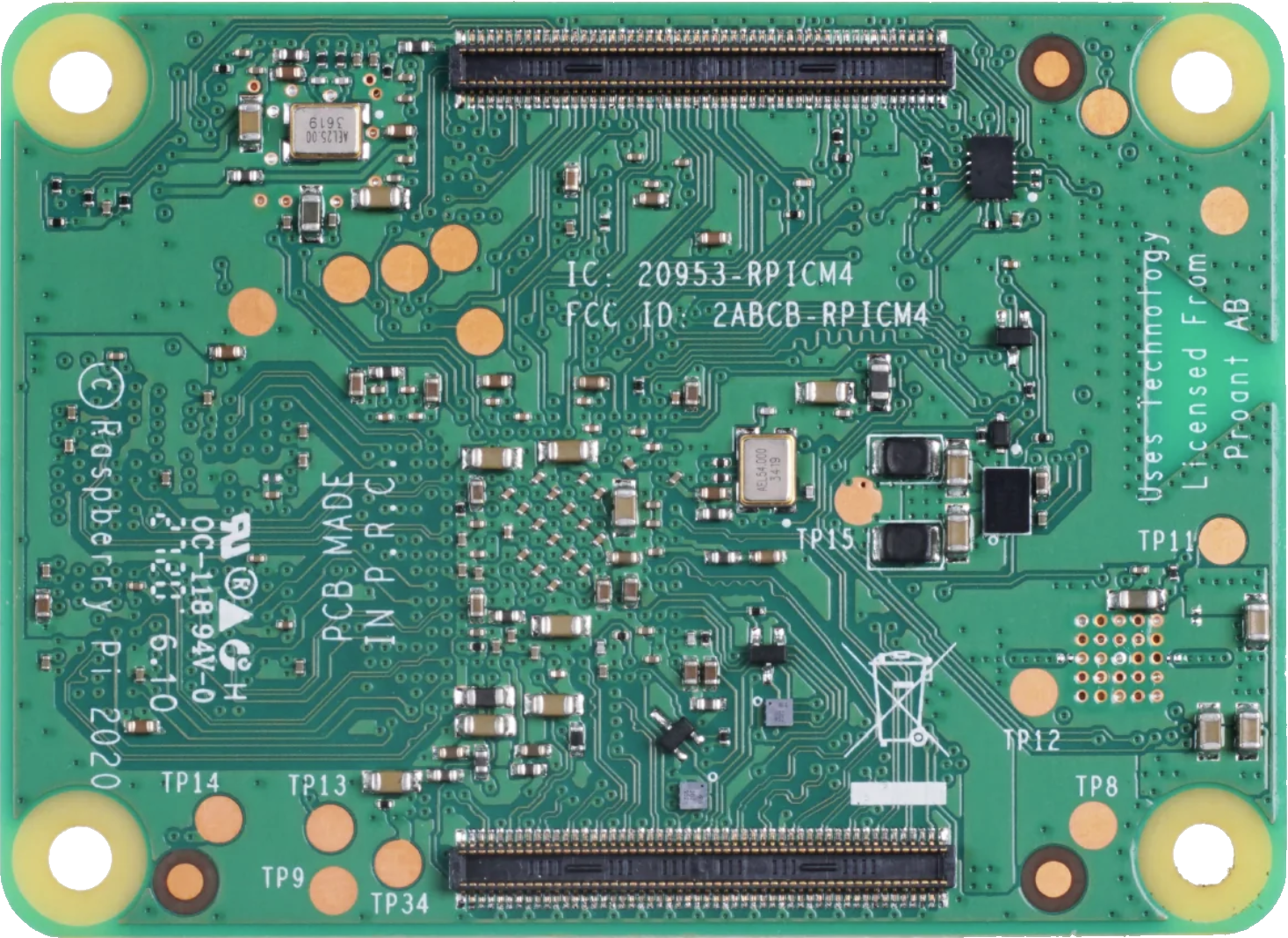

Back / bottom side, X mirrored
Raspberry Pi Compute Module 4 bottom side

Click or hover a point

Side— Reference— Name— Group— Approx. X / Y— Displayed X—
Test-point positions are approximate and were measured manually. Test points may move between CM4 board revisions; TP11 is one known example.

Legend

The CM4 datasheet does not publish a test-point coordinate table.
Signal assignments were verified manually. The available test points appear not to expose 5 V board power, USB, Ethernet, UART, or BOOT. Therefore, powering and flashing the board through these points is unlikely to be possible.
